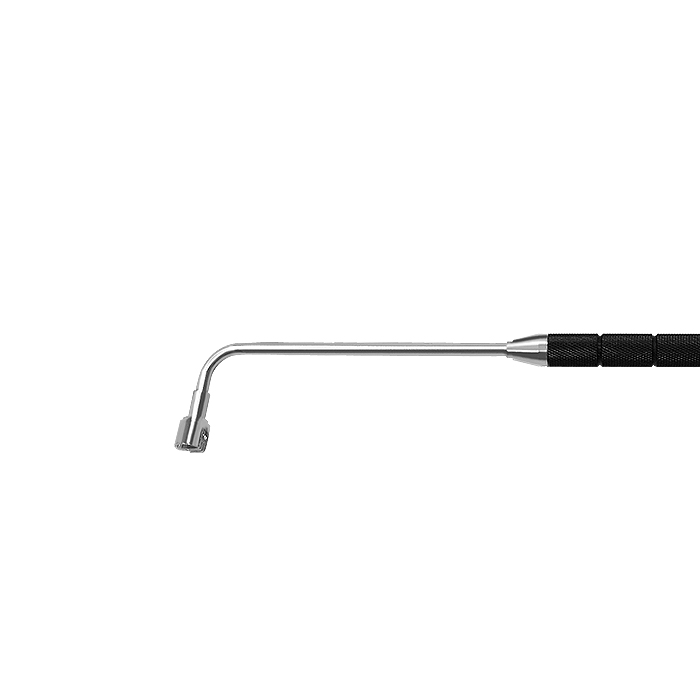

Probe Series

SU

Specifications
  • Measurement Range:  -100~400°C (-148~752°F)
  • Accuracy:  0.75%
  • Diameter of the Probe Tip:  K: 15±0.1mm / T: 15mm
  • Diameter of Probe:  K: 6.35±0.1mm / T: 6.3mm
  • Length of Probe:  K: 165±1.0mm / T: 150+60mm
  • Length of Cable:  (from tip of plug)

    K: 500±50mm / T: 720mm

  • Length of Cable/Max Length:  (from tip of plug)

    K: 1500mm / T: 720mm

  • Type of Extension Cable:  K: Coiled / T: Straight
  • Type of Plugk:  Miniature
  • Weight:  120±10g

Introduction

  • Description AR
    (Air)
    SU
    (Surface)
    PB
    (Penetration Blunted)
    PN
    (Penetration)
    Bead
    Product Image
    Measurement Range -100~400°C
    (-148~752°F)
    -50~250°C
    (-58~482°F)
    Accuracy 0.75%
    Grounded Yes K: No    T: Yes  -
    Response Time
    (in still water 90%)
    NA K: 5 sec.   T: NA 2 sec.
    Response Time
    (in still air 90%)
    5 sec. NA NA NA NA
    Diameter of the
    Probe Tip
    K: 10.2±0.1mm
    T: 10mm
    K: 15±0.1mm
    T: 15mm
    K: 3.2±0.1mm
    T: 3.2mm
    K: 3.17±0.1mm
    T: 3.2mm
    -
    Diameter of Probe
    K: 8±0.1mm
    T: 8mm
    K: 6.35±0.1mm
    T: 6.3mm
    K: 3.2±0.1mm
    T: 3.2mm
    K: 3.17±0.1mm
    T: 3.2mm
    -
    Length of Probe K: 190±1.0mm
    T: 155mm
    K: 165±1.0mm
    T: 150+60mm
    K: 200±1.0mm
    T: 200mm
    K: 100±1.0mm
    T: 100mm
    -
    Length of cable
    (from tip of plug)
    K: 740±50mm
    T: 720mm
    K: 500±50mm
    T: 720mm
    K: 740±50mm
    T: 720mm
    K: 740±50mm
    T: 720mm
    K: 1000±10mm
    T: 100mm
    Length of cable/
    Max Length

    (from tip of plug)
    K: 1600mm
    T: 720mm
    K: 1500mm
    T: 720mm
    K: 1740mm
    T: 720mm
    K: 1740mm
    T: 720mm
    K: 1000±10mm
    T: 100mm
    Type of Extension Cable K: Coiled    T: Straight Straight
    Type of Plugk Miniature
    Material of Probe SUS316  or  SUS304 -
    Weight (no package) 125±10g 120±10g 85±10g 80±10g 30±10g
    K: K type  T: T type   * Specifications are subject to change without notice.
