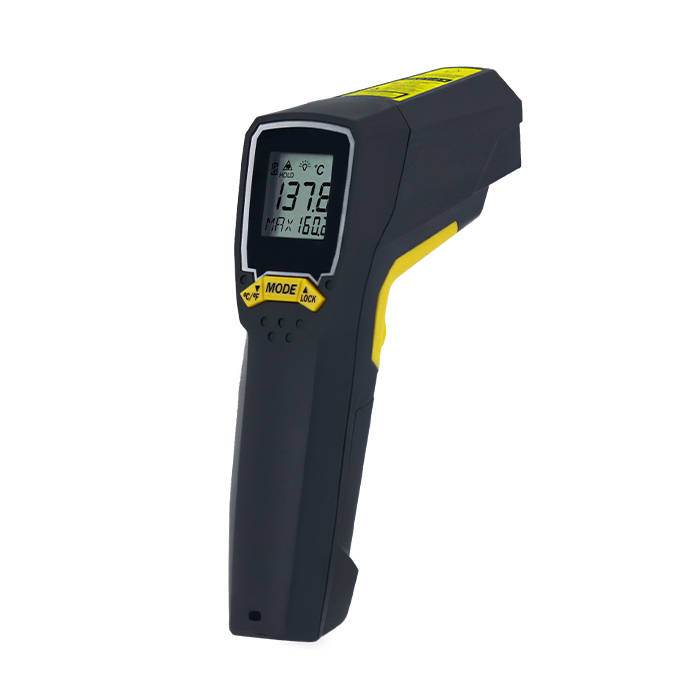

Gun Type
TN43P Series
Specifications
〈TN43PL1〉
〈TN43PL1〉
- Measurement Range: -50~460°C(-58~860°F)
- Full Range Accuracy:
≥0°C: ±2.5% of reading or 2.5°C(4.5°F) whichever is greater
<0°C: ±(2.5°C + 0.05/°C)°C
- Distance : Spot: 12 : 1
- Measurement Range: -60~550°C(-76~1022°F)
- Full Range Accuracy:
≥0°C: ±2% of reading or 2°C(4°F) whichever is greater
<0°C: ±(2°C + 0.05/°C)°C
- Distance : Spot: 12 : 1
-
Last Reading
-
Splash Proof IP54
Introduction
-
Feature
- User Friendly Interface
- High DS (Distance to Spot) Ratio up to 12:1
- Real time maximum temperature reading
- Recall the last reading
- Large LCD screen, with bright amber color backlight
- IP54 Splash Proof Classification
IP54 Splash Proof
Select Operating
Modes
Dual Beam Laser
(Mode with Y) -
Applications
Automation
HACCP
Industry
HVAC
Laboratory
-
* Specifications are subject to change without noticeTN43PL1 TN43PL2 Measurement Range -50~460°C(-58~860°F) -60~550°C(-76~1022°F) Full Range Accuracy ≥0°C: ±2.5% of reading or 2.5°C(4.5°F) whichever is greater
<0°C: ±(2.5°C+0.05/°C)°C≥0°C: ±2% of reading or 2°C(4°F) whichever is greater
<0°C: ±(2°C+0.05/°C)°CDistance : Spot 12:1 12:1 For more model information please scroll to the Technology Support and view in Catalogs.
