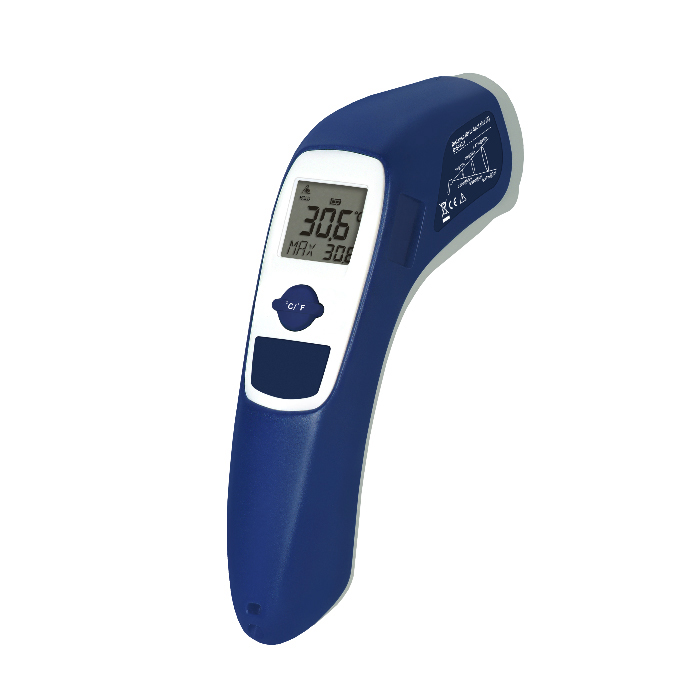

Gun Type

TN410 Series_1 Key

  • Measurement Range:  -60~500°C (-76~932°F)
  • Full Range Accuracy:

    ≥0°C: ±2.5% of reading or 2.5°C(4.5°F) whichever is greater

    <0°C: ±(2.5°C + 0.05/°C)°C

  • Distance : Spot:  12 : 1
  • Measurement Range:  -60~625°C (-76~1157°F)
  • Full Range Accuracy:

    ≥0°C: ±2% of reading or 2°C(4°F) whichever is greater

    <0°C: ±(2°C + 0.05/°C)°C

  • Distance : Spot:  16 : 1
  • TN410 Series_1 Key
    LED Flashlight
  • TN410 Series_1 Key
    BAR Display


  • Feature
    • National Lab Standard Traceable
    • IR-SoC technology (Infrared System on Chip) and Batch Calibration technology drive the dimensions and cost to the lowest limits
    • Large LCD Screen, with bright amber color Backlight
    • With White LED Flashlight (optional)
    • User Friendly Interface
    • New Low voltage technology, no more 9V battery
    • Auto Power Off: 15 Seconds

    White LED Flashlight

    Color Bar Display
    ( Model with G )

  • Applications


    Electric Power





  •   TN410L1 TN410L2 TN410L3
    Measurement Range -60~500°C(-76~932°F) -60~625°C(-76~1157°F) -60~500°C(-76~932°F)
    Full Range Accuracy ≥0°C : ±2.5% of reading or 2.5°C(4.5°F)
    whichever is greater
    <0°C : ±(2.5°C+0.05/°C)°C
    ≥0°C : ±2% of reading or 2°C(4°F)
    whichever is greater
    <0°C : ±(2°C+0.05/°C)°C
    Tobj= -33~500°C:
    ±2% of reading or 2°C(4°F)
    whichever is greater
    Distance : Spot 12:1 16:1 12:1
    * Specifications are subject to change without notice
