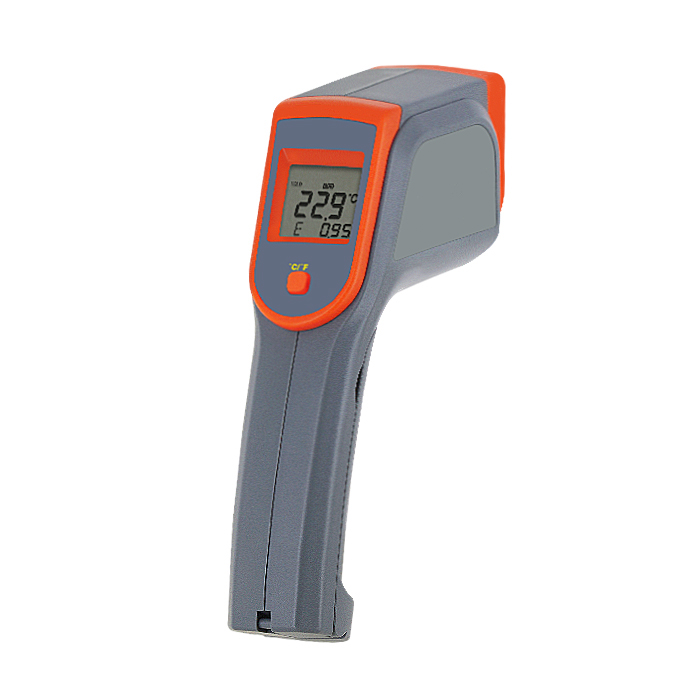

Gun Type
TN418 Series_1 Key
Specifications
〈TN418L1〉
〈TN418L1〉
- Measurement Range: -60~500°C (-76~932°F)
- Full Range Accuracy:
≥0°C: ±2.5% of reading or 2.5°C(4.5°F) whichever is greater
<0°C: ±(2.5°C + 0.05/°C)°C
- Distance : Spot: 12 : 1
- Measurement Range: -60~625°C (-76~1157°F)
- Full Range Accuracy:
≥0°C: ±2% of reading or 2°C(4°F) whichever is greater
<0°C: ±(2°C + 0.05/°C)°C
- Distance : Spot: 16 : 1
-
LED Flashlight
-
BAR Display
-
Backlight
Introduction
-
Feature
- Select operating modes and adjust parameters easily
- Built-in jack support and K-type TC probe with "mini-style" connector
- With White LED Flashlight (optional)
- Various Measurement Range & DS Ratio optional
LED Flashlight
(optional)
Color Bar Display
( Model with G ) -
Applications
Automation
Electric Power
HACCP
Industry
HVAC
Laboratory
-
* Specifications are subject to change without noticeTN418L0Z TN418L0Y/TN418L1 TN418L2 TN418L3 Measurement Range -60~550°C(-76~1022°F) -60~500°C(-76~932°F) -60~625°C(-76~1157°F) -60~500°C(-76~932°F) Full Range Accuracy ≥0°C : ±2.5% of reading or 2.5°C(4.5°F)
whichever is greater
<0°C : ±(2.5°C+0.05/°C)°C≥0°C : ±2% of reading or 2°C(4°F)
whichever is greater
<0°C : ±(2°C+0.05/°C)°CTobj= -33~500°C:
±2% of reading or 2°C(4°F)
whichever is greaterDistance : Spot 15:1 12:1 16:1 12:1 For more model information please scroll to the Technology Support and view in Catalogs.
