Gun Type

TN41A Series_3 Key

Specifications

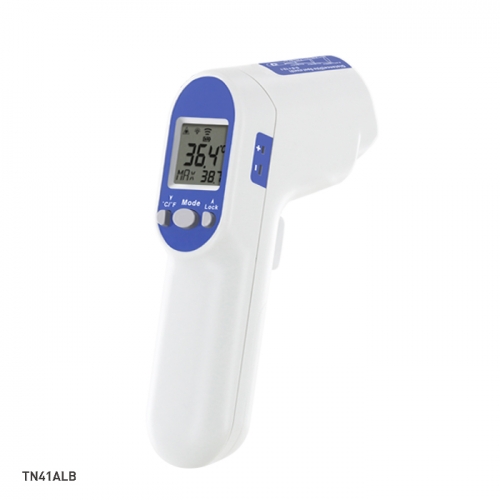

〈TN41ALB〉
  • Measurement Range:  -60~760°C (-76~1400°F)
  • Distance : Spot:  30 : 1
〈TN41ALC〉
  • Measurement Range:  -60~500°C (-76~932°F)
  • Distance : Spot:  12 : 1
  • Full Range Accuracy:

    ≥0°C: ±2% of reading or 2°C(4°F) whichever is greater

    <0°C: ±(2°C + 0.05/°C)°C

  • Thermocouple Probe:  Small Socket, K type, 12 minutes auto power off
  • Measurement Range*:  -64~1400°C(-83.2~1999°F)
  • Probe Accuracy:  ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C)
  • TN41A Series_3 Key
    Thermocouple Socket
  • TN41A Series_3 Key
    BAR Display
  • TN41A Series_3 Key
    Backlight

Introduction

  • Feature
    • National Lab Standard Traceable
    • Various Measurement Range & DS Ratio for option
    • Precise K type Thermocouple Thermometer available (optional)
    • Color bar displays temperature in Max/Min mode
    • Large LCD Screen, with bright amber color backlight
    • New Low voltage technology, no more 9V battery


    Built-in Socket

    User Friendly Interface

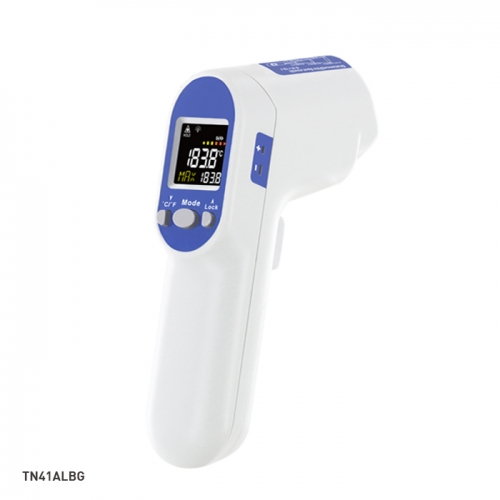

    Color Bar Display
    ( Model with G )

  • Applications


    Automation

    HACCP

    HVAC

    Electric Power

    Industry

    Laboratory
