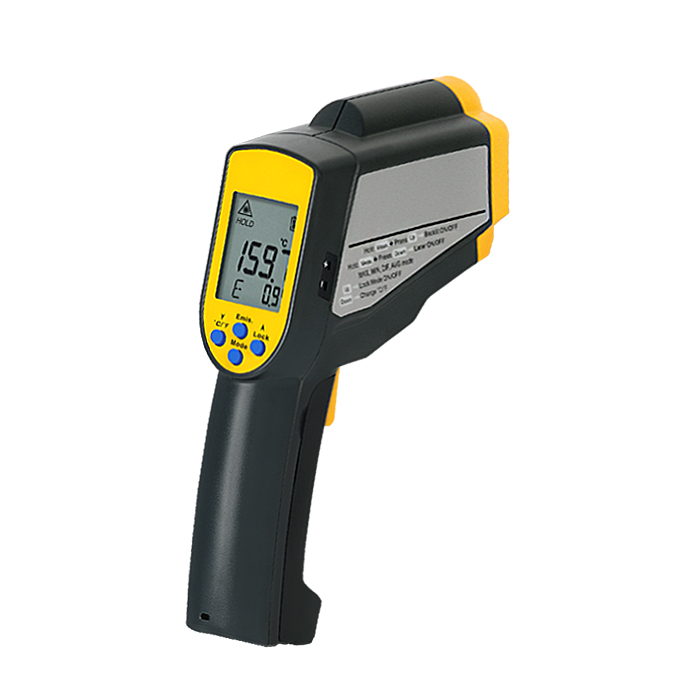

Gun Type
TN475/TN425 Series
Specifications
〈TN475LC〉
〈TN475LC〉
- Measurement Range: -60~1600°C(-76~2912°F)
- Full Range Accuracy:
≥0°C: ±2% of reading or 2°C(4°F) whichever is greater
<0°C: ±(2°C + 0.05/°C)°C
- Distance : Spot: 75 : 1
- Measurement Range: -60~1000°C(-76~1832°F)
- Full Range Accuracy:
Tobj=-33~1000°C: ±2% of reading or 2°C(4°F) whichever is greater
(Test under Tamb=23±6°C)
- Distance : Spot: 50 : 1
- Thermocouple Probe: Small Socket, K type, 12 minutes auto power off
- Measurement Range*: -64~1400°C(-83.2~2552°F)
- Probe Accuracy: ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C)
-
Thermocouple Socket
-
Memory
-
LED Flashlight
-
Backlight
Introduction
-
Feature
- Infrared up to 1600°C(2912°F)

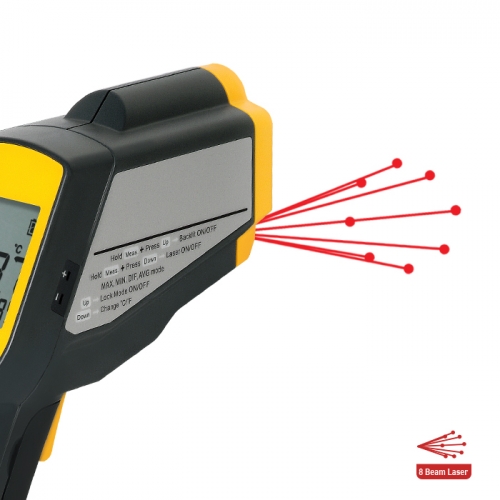

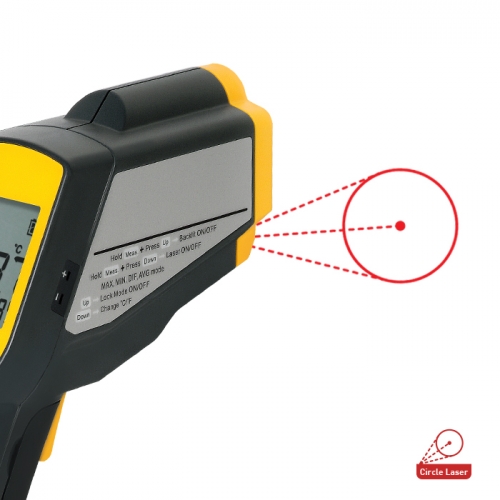

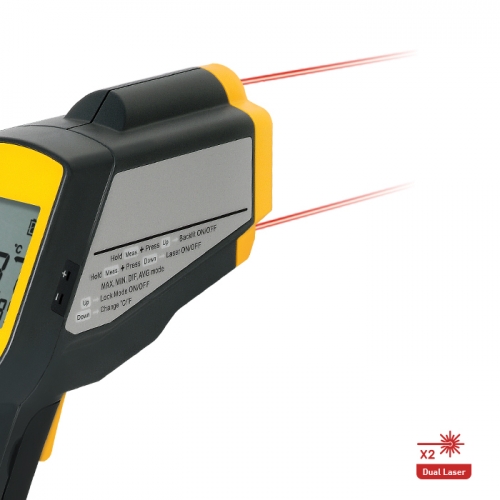

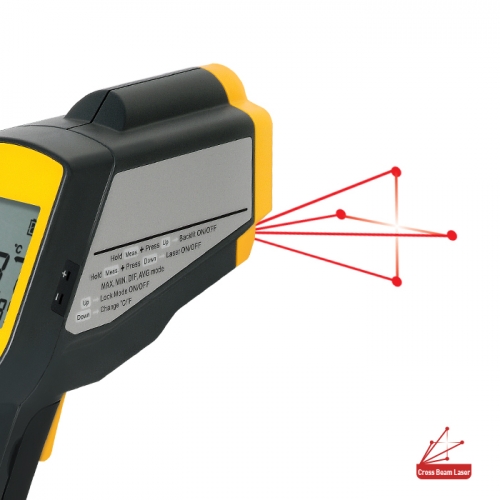

- Laser Sight for better targeting
- High DS (Distance to Spot) Ratio up to 75:1 <TN475> / 50:1 <TN425>
- Detailed 24 Memories with Temperature & Emissivity <TN425LN(E)/ TN425LM(E)>
- Mini Thermocouple Socket up to 1400°C(optional)
- Best Cost/Performance Ratio
- Large LCD display with Power Backlight
Built-in Socket
Magnetic Stand
(optional)
Memory Mode
(optional)
Tripod Mount
-
Applications
Steel-making
Electric Power
Petrochemical
-
* Specifications are subject to change without noticeTN425LA TN425LC/TN425LM/TN425L TN425LB/TN425LN Measurement Range -60~1200°C(-76~2192°F) -60~1000°C(-76~1832°F) -60~1500°C(-76~2732°F) Full Range Accuracy Tobj= -33~1200°C:
±2% of reading or 2°C(4°F)
whichever is greaterTobj= -33~1000°C:
±2% of reading or 2°C(4°F)
whichever is greaterTobj= -33~1500°C:
±2% of reading or 2°C(4°F)
whichever is greaterDistance : Spot 50:1 50:1 50:1 Thermocouple Probe Small Socket, K type, 12 minutes auto power off Measurement Range* -64~1400°C(-83.2~2552°F) Probe Accuracy ±1% of reading or 1°C(1.8°F) whichever is greater(Test under Tamb=23±6°C) For more model information please scroll to the Technology Support and view in Catalogs.
