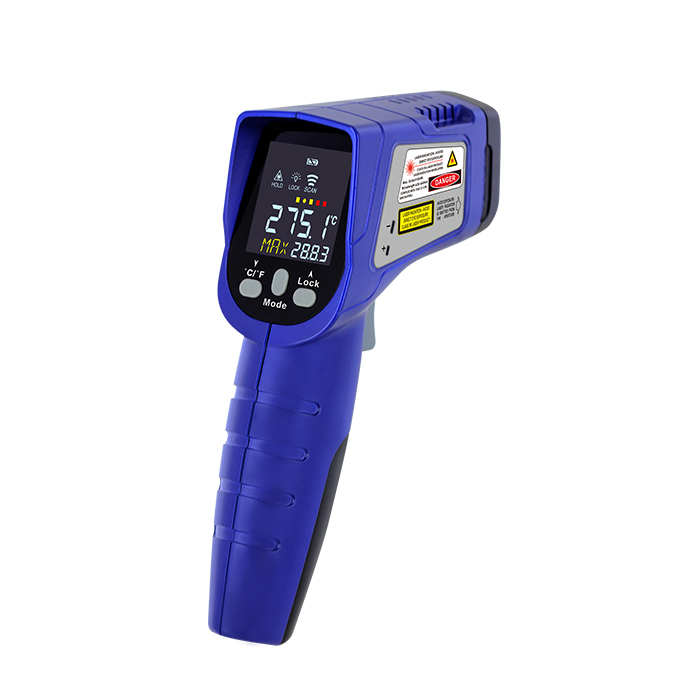

Gun Type

TN49R Series

Specifications
  • Measurement Range:  -60~550°C (-76~1022°F) / -60~1000°C(-76~1832°F)
  • Full Range Accuracy:

    ≥0°C: ±2% of reading or 2°C(4°F) whichever is greater

    <0°C: ±(2°C + 0.05/°C)°C

  • Distance : Spot:  12 : 1 / 30 : 1
  • TN49R Series
    Thermal Bridge
  • TN49R Series
    Relative Humidity
  • TN49R Series
    Dew Point Temperature
  • TN49R Series
    BAR Display
  • TN49R Series
    Vibration
  • TN49R Series
    Bluetooth

Introduction

  • Feature
    • THB (thermal bridge detection) / DPT (dew point temp.)
    • Infrared up to 1000°C

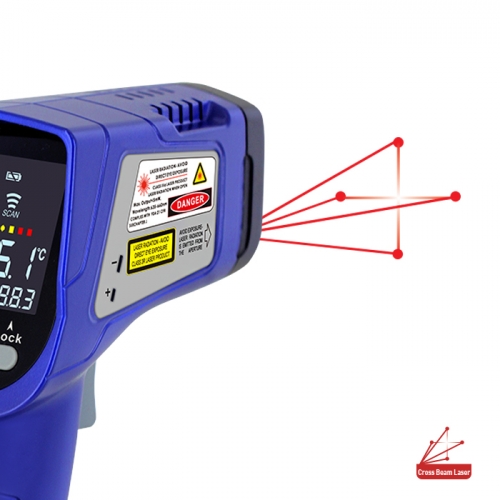

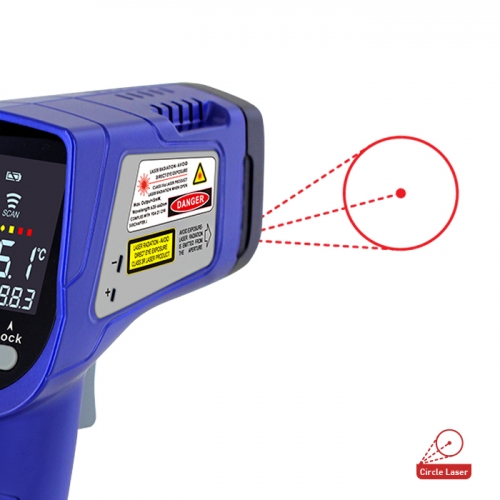

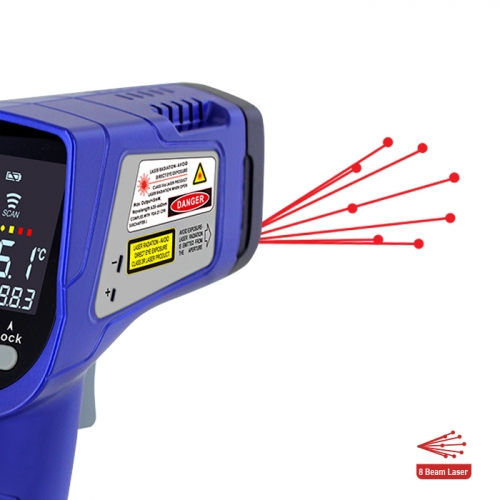

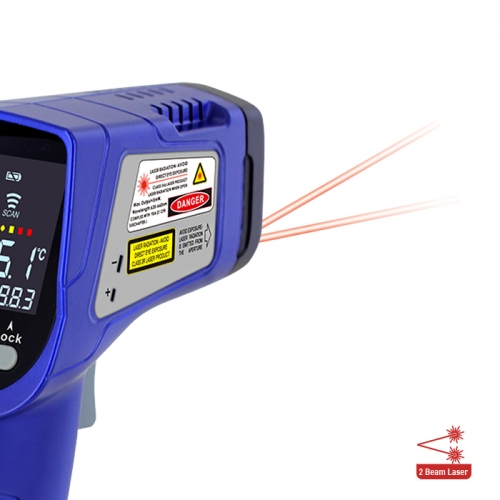

    • Laser sight technology
    • High DS (Distance to Spot) Ratio up to 30:1
    • Color bar displays
    • Socket / USB / Bluetooth (optional)


    RH Sensor

    Built-in Socket
    (optional)

    Color Bar Display

    Tripod Mount

  • Applications


    Building Diagnostics

    HVAC
